उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: 1stess
प्रमाणन: 1
मॉडल संख्या: एनरक्यूब
दस्तावेज: Specification EnerCube3.0-F...ch.pdf
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1
मूल्य: negotiable
पैकेजिंग विवरण: पात्र
प्रसव के समय: 60-90 दिन
भुगतान शर्तें: एल/सी, टी/टी
आपूर्ति की क्षमता: प्रति माह 10 कंटेनर
निगरानी तंत्र: |
दूरस्थ निगरानी और नियंत्रण |
वोल्टेज रेंज: |
400-800 वोल्ट |
कंटेनर आकार: |
20 फीट |
गारंटी: |
5 साल |
आवेदन: |
पावर ग्रिड स्थिरीकरण और शिखर शेविंग |
बैटरी की क्षमता: |
बातचीत योग्य |
निगरानी तंत्र: |
दूरस्थ निगरानी और नियंत्रण |
वोल्टेज रेंज: |
400-800 वोल्ट |
कंटेनर आकार: |
20 फीट |
गारंटी: |
5 साल |
आवेदन: |
पावर ग्रिड स्थिरीकरण और शिखर शेविंग |
बैटरी की क्षमता: |
बातचीत योग्य |
Type | P400C860 | P500C1075 | P600C1290 | P700C1505 | P800C1720 |
---|---|---|---|---|---|
DC side parameters | |||||
Cell type &capacity | LiFePO₄-280Ah | ||||
Battery module type | 1P20S | ||||
System configuration | 4*1P240S | 5*1P240S | 6*1P240S | 7*1P240S | 8*1P240S |
Capacity(BOL) | 860kWh | 1075kWh | 1290kWh | 1505kWh | 1720kWh |
AC side parameters | |||||
Grid type | 3P4W+PE | ||||
Rated output power | 400kW | 500kW | 600kW | 700kW | 800kW |
Rated voltage | AC400V | ||||
Rated frequency | 50/60(±5)Hz | ||||
Maximum output current | 577A | 722A | 866A | 1010A | 1155A |
Harmonics | <3%(@rated power) | ||||
Overload capacity | 110%,10mins;120%,60s | ||||
General parameters | |||||
Isolation transformer | No | ||||
Protection level | Outdoor installation (Battery cabinet:IP55,Electrical room:IP34) | ||||
Container anti-corrosion grade | C3 | ||||
Operation temperature* | -20℃~50℃ | ||||
Relative humidity | 0~95%(non-condensing) | ||||
Permissible altitude** | <2000m | ||||
Cooling method | Battery cabinet:HVAC,Electrical room:forced air cooling | ||||
Fire fighting system | FAS &FM200/Novec1230 | ||||
Noise emission | ≤75dB | ||||
Dimension (W*D*H) | 20HQ container (6058mm*2438mm*2896mm) | ||||
Maximum weight | 24500kg | ||||
Communication interface | Ethernet | ||||
Communication protocol | Modbus TCP/IP | ||||
Warranty | 5 years (can be extended to 10 years)Warranty | ||||
Certification | System:UN3536,LVD,EMC,RoHS Cell:IEC62619,UL1973,UL9540A PACK:UN38.3 PCS:G99,EN50549,AS4777.2,VDE4105 |

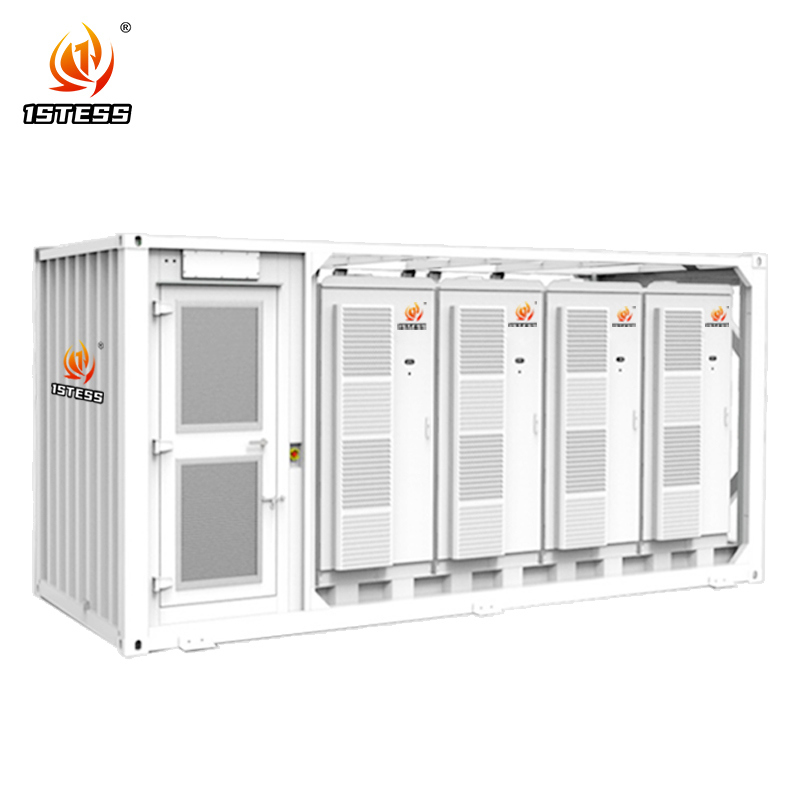

All-in-One Plug & Play Design Pre-integrated within a standardized shipping-integrated within a standardized shipping container for rapid deployment. Reduces on-site installation time by up to 70% and slashes project costs. Optimized for seamless transport, lifting, and maintenance.
Intelligent Modular Architecture Self-managing battery clusters with built-in thermal isolation ensure safety and reliability. Maintain or replace individual clusters without shutting down the entire system—minimizing operational disruptions.
Universal Energy disruptions.
Universal Energy Integration Supports both AC and DC coupling for flexible connectivity with solar arrays, wind turbines, diesel generators, and grid networks. Enables efficient bidirectional energy flow for charging/discharging.
Scalable Power & Robust Performance Choose from 400kW–800kW power outputs and 860kWh–1720kWh capacities. Delivers high efficiency (<3% harmonic distortion) with overload resilience (110% for 10 mins, 120% for 60s).
Military-Grade Safety Multi-layer protection: fire suppression (FM200/Novec1230), thermal runaway containment, and 24/7 monitoring. Globally certified (UL1973, IEC62619, UN38.3) with IP55/IP54 environmental shielding.
Environmental shielding.
Extreme Environment Ready Operates from -20°C to 50°C and withstands 95% humidity. Corrosion-resistant (C3 grade) and altitude-adaptive (up to 2000m). Low-noise operation (≤75dB) ensures community-friendly deployment.
Smart Predictive Maintenance Cloud-based monitoring platform enables remote diagnostics, fault prediction, and proactive servicing—cutting downtime by 40% and extending system lifespan.
Future-Proof Investment Backed by a 5-year standard warranty (extendable to 10 years), reducing long-term ownership risks.
