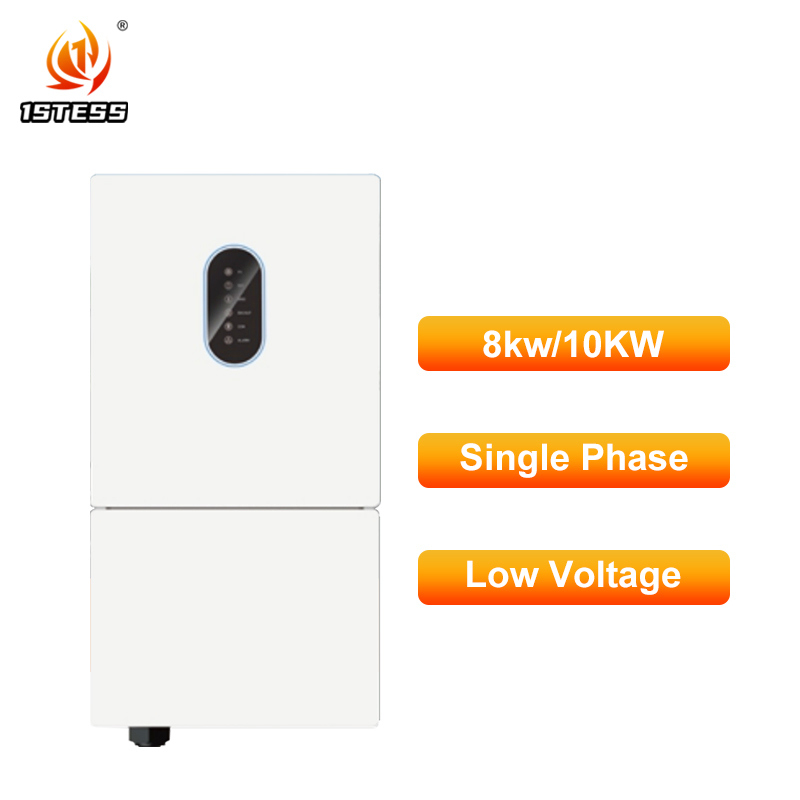

Hybrid Solar Inverter 48V 8000W 5Kw 8Kw Hybrid On Grid Solar Power Inverters

Name: Hybrid Solar Inverter 48V 8000W 5Kw 8Kw Hybrid On Grid Solar Power Inverters
Brand: Shenzhen First Tech Co., Ltd.
SKU: SP10KL
Price: 350.00 USD
Availability: InStock

उत्पाद का विवरण

उत्पत्ति के प्लेस: चीन

ब्रांड नाम: 1stess

प्रमाणन: CE, IEC

मॉडल संख्या: SP10KL

भुगतान और शिपिंग की शर्तें

न्यूनतम आदेश मात्रा: 1 टुकड़ा

मूल्य: To be negotiated

पैकेजिंग विवरण: कार्टन का डिब्बा

प्रसव के समय: 30 दिन

भुगतान शर्तें: एल/सी,टी/टी

आपूर्ति की क्षमता: प्रति माह 2000 टुकड़े

सबसे अच्छी कीमत पाएं

अब संपर्क करें

विनिर्देश

विवरण

विनिर्देश

प्रमुखता देना:
                                                                                                                                                                                                                                                                                                                                                                                                      48V hybrid solar inverter, 8000W hybrid solar inverter, on grid solar power inverter


चार्जिंग मोड:	एमपीपीटी	परिचालन तापमान:	-10 डिग्री सेल्सियस से 50 डिग्री सेल्सियस
इन्वर्टर प्रकार:	बंद ग्रिड इन्वर्टर	आवृत्ति:	50 हर्ट्ज/60 हर्ट्ज
आउटपुट वोल्टेज:	48VDC	संचार इंटरफेस:	आरएस485/कैन/यूएसबी

चार्जिंग मोड:	एमपीपीटी
परिचालन तापमान:	-10 डिग्री सेल्सियस से 50 डिग्री सेल्सियस
इन्वर्टर प्रकार:	बंद ग्रिड इन्वर्टर
आवृत्ति:	50 हर्ट्ज/60 हर्ट्ज
आउटपुट वोल्टेज:	48VDC
संचार इंटरफेस:	आरएस485/कैन/यूएसबी

विवरण

Hybrid Solar Inverter 48V 8000W 5Kw 8Kw Hybrid On Grid Solar Power Inverters

On/Off Grid Solar Inverter Pure Sine Wave Solar Inverter

Product Features:

Up to 200% oversizing allowed with 3 MPPTS
Support AC coupled solar input
Stackable up to 9 units
Four application modes
Remote configuration and upgrade
Support 40-64V Lithium or Lead-acid battery

MODEL	SP8KL	SP10KL
Nominal Battery Voltage	48VDC	48VDC
Mounting Method	Wall Bracket	Wall Bracket
Battery Type	Lithium-ion/Lead-acid	Lithium-ion/Lead-acid
Nos.of MPPT	3	3
Nominal Output Voltage	220V/230/240V,L+N+PE	220V/230/240V,L+N+PE
Battery Voltage Range	40V-64V	40V-64V
Rated Grid Frequency	50Hz/60Hz	50Hz/60Hz
Transfer Time	10ms (typical)	10ms (typical)
Nominal AC Output Power	8000W	10000W
Protection Degree	IP66	IP66
Max.AC Output Apparent Power	8800VA	110000VA
Weight	39Kg	39Kg
Dimensions (WHD)	420mm800mm240mm	420mm800mm240mm
Warranty	5 Years/10 Years (Optional)	5 Years/10 Years (Optional)
Display	LED,LCD	LED,LCD

Technical Parameters:

Canada

What is the operating temperature range?

The inverter functions optimally from -25°C to 60°C, ensuring year-round reliability.

Is it compatible with Canadian grid standards?

Yes, it supports grid voltages of 220V/230V/240V and frequencies of 50Hz/60Hz.

How efficient is the inverter in snowy conditions?

With its high IP66 rating, it is protected against snow and ice ingress.

Does it support lithium batteries?

Yes, it is compatible with modern lithium-ion batteries, ideal for cold climates.

What is the max short-circuit current per MPPT?

It handles up to 40A, ensuring safe operation under fault conditions.

Can it be monitored remotely?

Yes, through Bluetooth and mobile apps, you can access real-time data.

Does it include DC reverse protection?

Yes, it prevents damage from incorrect PV connections.

What is the peak apparent power for backup?

The SP10KL model delivers 20,000VA for 1 second, handling sudden load surges.

Is it certified for safety?

It meets IEC 62109-1&2 standards, ensuring reliable operation.

Why is it a smart choice for Canadians?

Its ability to perform in extreme cold, high efficiency, and robust safety features make it a valuable addition to any solar setup.

India

What is the max PV voltage supported?

The inverter handles up to 600V, making it suitable for high-capacity solar arrays.

Is it compatible with Indian grid voltages?

Yes, it supports 220V/230V/240V, aligning with local standards.

How does it handle frequent voltage fluctuations?

With an adjustable grid voltage range of 150V-300V, it adapts to unstable grids.

Can it work with lead-acid batteries commonly used in India?

Absolutely! It supports both lithium-ion and lead-acid batteries.

What is the MPPT operating voltage range?

It operates between 70V and 540V, optimizing energy harvest.

Does it include fan cooling?

Yes, it uses fan cooling to maintain performance in India's hot summers.

Is the installation process straightforward?

Yes, its wall-mounted design and terminal connections ensure hassle-free setup.

What is the warranty option?

You can select a 5-year or 10-year warranty for extended coverage.

Can it power heavy appliances during outages?

With a peak apparent power of 16,000VA (SP8KL) or 20,000VA (SP10KL), it can handle demanding loads.

Why should Indian homeowners choose this inverter?

Its ability to manage grid instability, high efficiency, and backup capabilities make it perfect for ensuring uninterrupted power.

Mexico

What is the battery charging efficiency?

The inverter achieves up to 95% efficiency during battery-to-AC conversion.

Is it compatible with Mexican grid standards?

Yes, it supports grid voltages and frequencies commonly used in Mexico.

How does it perform in high-temperature environments?

It operates efficiently up to 60°C, making it suitable for Mexico's climate.

Does it support generator integration?

Yes, it seamlessly connects with generators for additional backup.

What is the max charge/discharge power?

For the SP10KL, it reaches 10,000W for both charging and discharging.

Is it protected against dust and water?

With an IP66 rating, it is fully protected against harsh environmental conditions.

Can it handle multiple PV strings?

Yes, with three MPPTs and two strings per MPPT, it maximizes solar energy harvest.

What communication interfaces does it support?

It includes CAN for BMS and RS485 for monitoring.

Does it come with a display?

Yes, it features optional LCD displays and app-based monitoring.

Why is it ideal for Mexican households?

Its high PV input capacity, robust protection features, and adaptability to local grids ensure long-term reliability and savings.
